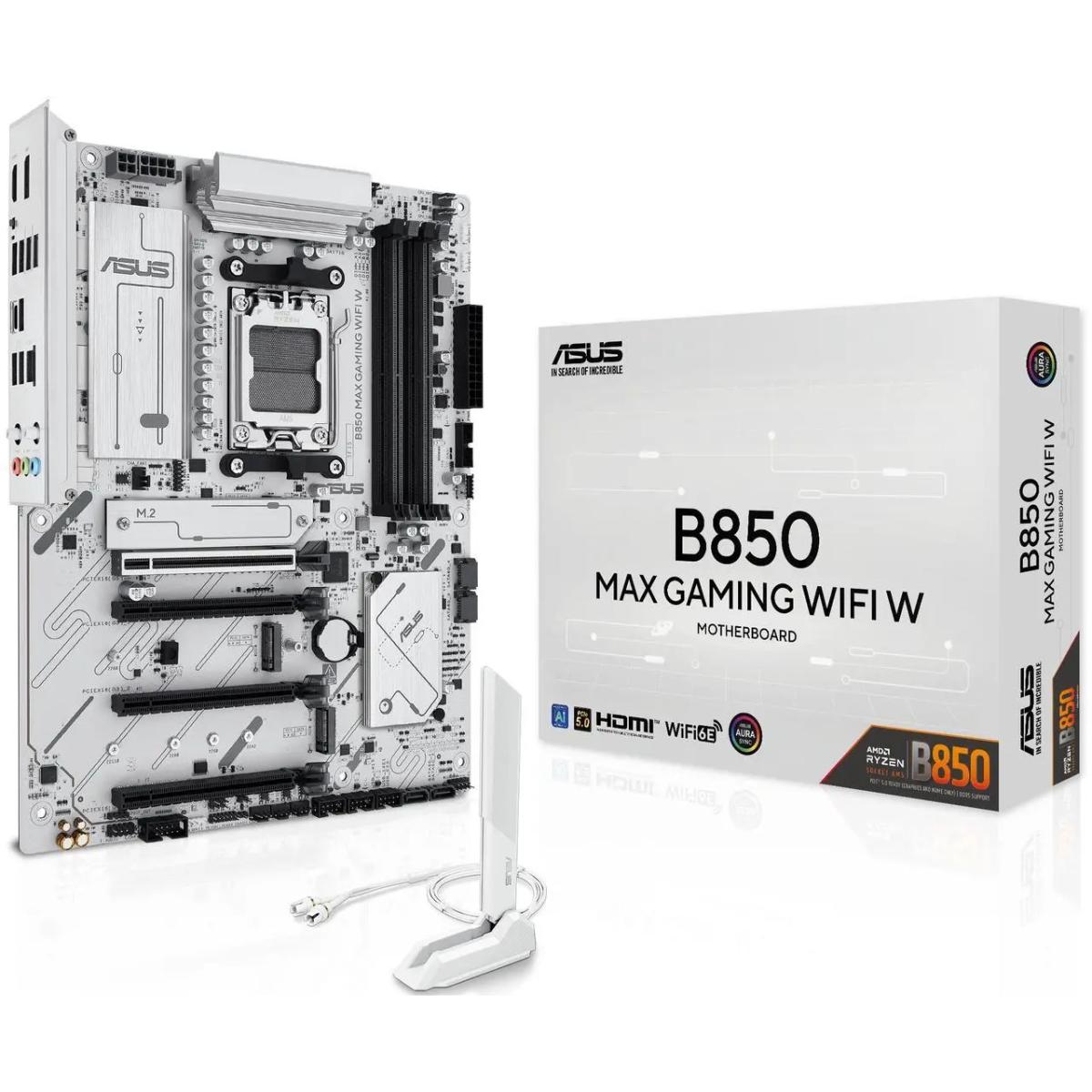

ASUS B850 MAX GAMING WIFI W (Wi-Fi 6E) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/3xM.2 – ATX Gaming MotherBoard

Description Specification Motherboard Specifications Supported Processors Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 Chipset AMD B850 Socket AMD AM5 Memory Type DDR5 Memory Slots 4 Maximum Memory 256GB Memory Bus Speed 4 x DIMM slots max. 256GB DDR5 Supports up to 8000 MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors ECC and Non-ECC Un-buffered DIMM* Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Ports 1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Form Factor ATX M.2 Slots Yes Expansion Slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)*** * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/). ** Specifications vary by CPU types. *** The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs. – To ensure compatibility of the device installed please refer to https://www.asus.com/support/download-center/ for the list of supported SKU: B850 MAX GAMING WIFI W Categories: AMD, AMD-DDR5, Components, MotherBoard Tags: amd, Gaming Custom, Jordan
