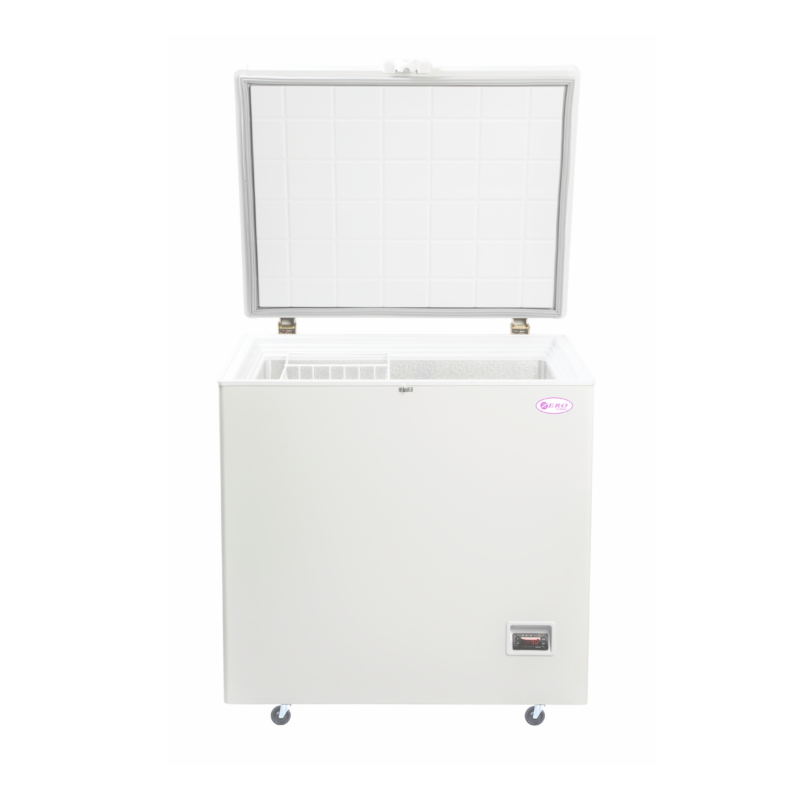

Model Reference – ECF 220 DC Specifications: Total Capacity – 210L (7.42 CuFt.) Lids – 1 Baskets Supplied – 1 Thermostat – YES Climate Class – ST Temperature Range – -18°C To 7°C Star Rating (Freezer) – 3 Minimum System Requirements (NOT SUPPLIED) Panel Output – 250 Watts Battery Output – 200 Ah/12V (parallel) or 100 Ah/24V (series) Energy Source 12V Battery Solar – 2 X 12V Batteries in Parallel or 24V Battery Solar – 2 X 12V Batteries in Series Additional Parts Required To Complete The Installation: (NOT SUPPLIED) (All parts & required components must be purchased from your local solar supplier or installer) 6mm square cable – Red (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less 6mm square cable – Black (this connects from the solar panel to the solar controller and then to the fridge or chest freezer) – standard requirement is approx. 15 meters but you may need more or less 10mm panel wire – Red (this connects from the solar controller to the battery system) – standard requirement is approx. 1,5 meters but you may need more or less 6mm panel wire – Black (this connects from the solar controller to the battery system) – standard requirement is approx. 1,5 meters but you may need more or less 6mm earth cable – (length required is dependent upon distance from panel to the ground fixture to earth rod) Cable protector conduit to protect the cables from external elements Cable protector glands (2 required if cable protector is opted for) Adjustable solar panel frame made from Aluminum (if required) Dimensions Boxed Dimensions – (H) 905mm x (W)895mm x (D) 755mm Unboxed Dimensions (mm) – (H) 875mm x (W)845mm x (D) 725mm Weight (Kg’s) – boxed – 42kg Weight (Kg’s) – unboxed – 40kg To Be Installed By A Registered Electrician Warranty Null And void without Valid COC From Installer
